Specs for Standard Rig/ Wing Keel
L.O.A. 29' 11"
L.W.L. 25' 0"
Beam 10' 10"
Vertical Clearance 45' 5"
Wing Keel
  Draft 3' 10"
  Ballast 4,300 lbs
  Weight (approx.) 10,300 lbs
  Displacement/Length  294
  Sail Area/Displacement  15.1
Sail Area, Standard Rig
  Mainsail 201 sq ft
  100% Foretriangle 245 sq ft
  Total (100% Fore) 446 sq ft
    I 41' 0"
    J 11' 6"
    P 35' 0"
    E 11' 6"
Engine
Universal Westerbeke
61ci, 1.0L Diesel		 25XPB Series B
26hp@3000rpm
Fuel Consumption ½ gal/hr@2,500rpm
Tankage
Fuel 18 gal
Water  50 gal total
   Starboard Tank 17 gal
   Forward Tank 27 gal
   Water Heater 6 gal
Sail Dimensions
Main
   Luff           35.0
   Leech       36.41
   Foot         11.5
100% Jib
   Luff          38.0  (LP 11.5)
   Leech      34.5
   Foot        12.8
135% Jib
   Luff          39.3  (LP 15.5)
   Leech      36.75
   Foot        16.5
150% Jib
   Luff          39.3  (LP 17.5)
   Leech      37.72
   Foot        18.3
Cruising Asymetric Spinnaker
   Luff          41
   Leech     35
   Foot        21



Original Factory Options   Hull Number CTYN6294F495   Documented 1024940

  • Cabintop Winches Self Tailing, Lewmar #16 (2)
  • Sheet Winches Self Tailing, Lewmar #40, two speed (2)
  • 135% Genoa
  • Hood Model 800 Roller Furler
  • Dutchman System
  • Factory Canvas Pkg (sail, pedastal, winch covers)
  • Hot & Cold Deck Shower
  • Leather Wrapped Wheel
  • Std. Cockpit Cushions
  • Edson Teak Cockpit Table
  • Raytheon ST50 Instruments (wind,speed,depth)

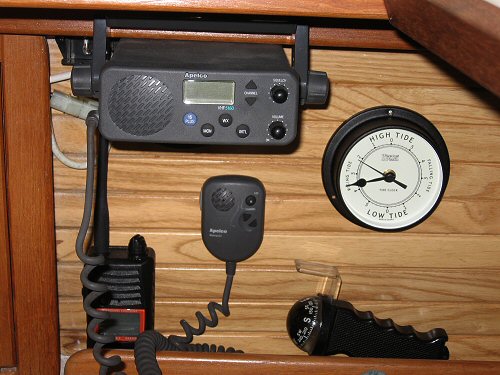

  • Raytheon Apelco 5160 VHF
  • Three blade cruising prop
  • Stern Seat Back Cushions and Rail Cushions
  • Cabin Window Shades
 Engine Specs

Universal Westerbeke M-25XPB Diesel
3 cylinder, 61ci, 1.0L displacement
26hp @ 3,000rpm
Rated Max RPM: 3200
Recommended Cruising RPM: 2200-2500
½ gal/hr @ 2,500rpm = 36 hour cruising range

This is a marinized Kubota engine
Kubota D-850, from B6200D Tractor Chasis

Additional Equipment
  • Lazy Jack Conversion

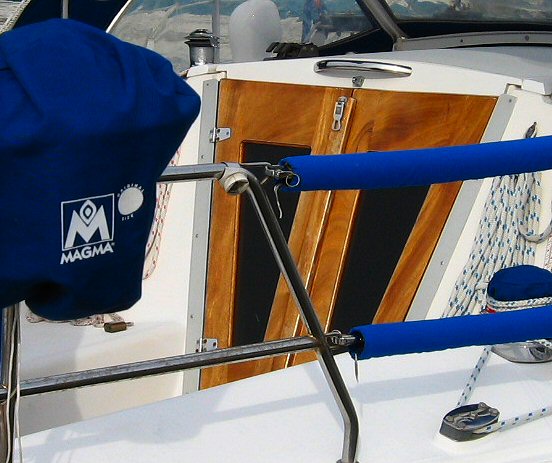

  • Custom Teak Hatch Doors w/Screens
  • LED Cabin Lighting
  • Simrad WP32 Autopilot
  • Garmin 441S Chartplotter
  • Garmin Instrument Package
  • NMEA 2000 Network
  • Sony CD stereo, w/MP3, XM and Helm Remote
  • Creative Zen MP3 player
  • Bose Cabin and Cockpit Speakers
  • Dockside Cable TV & Water
  • 12v Flatpanel TV w/DVD
  • Lifesling & Jim Bouy
  • Magma Grill
  • Upgraded all canvas: Dodger, Bimini & Custom Sunbrella Cockpit Cushions
  • Midship Cleats
  • Danforth Anchors (2)
  • Webasto Air Conditioning
  • New Ultraleather Salon & New Berth Cushions
  • Cowl vents
  • Solar fan
  • Cabin Fans
  • Weems & Plath instruments (barometer, clock, tide clock, oil lamp, ship's bell)
  • Solar stern lights
  • Zepplin Hyphalon 8' hard bottom dinghy
  • Tohatsu 3.5hp Outboard

Ground Tackle

Primary
Danforth 22-6  20-SA9, 20' chain, 175' total rode
  20lb Danforth Hi-Tensile, boats up to 50'

Secondary
West Marine Danforth Style Trad 13 (13lb lunch hook), 10' chain, 100' total rode
  13lb. Traditional Anchor, 21' to 32' Boat Length, 900lb. SWL, 28-1/2"L x 22"W, 15" Fluke Length (WM Model# 439943)
   Sand & mud, no holding in grass, rocks or clay

Storm Anchor
Manta claw anchor, 33lb for boats up to 45'. Best holding in rocks, coral & gravel

Dinghy Anchor
Seafit folding grapnel 5lb, 50' rode




Table dimensions  28x52

keel bottom to transducer - 33"

2 House Batteries: CA900 @32F, CCA 770 @0F, Model MAXX-34N
